General |

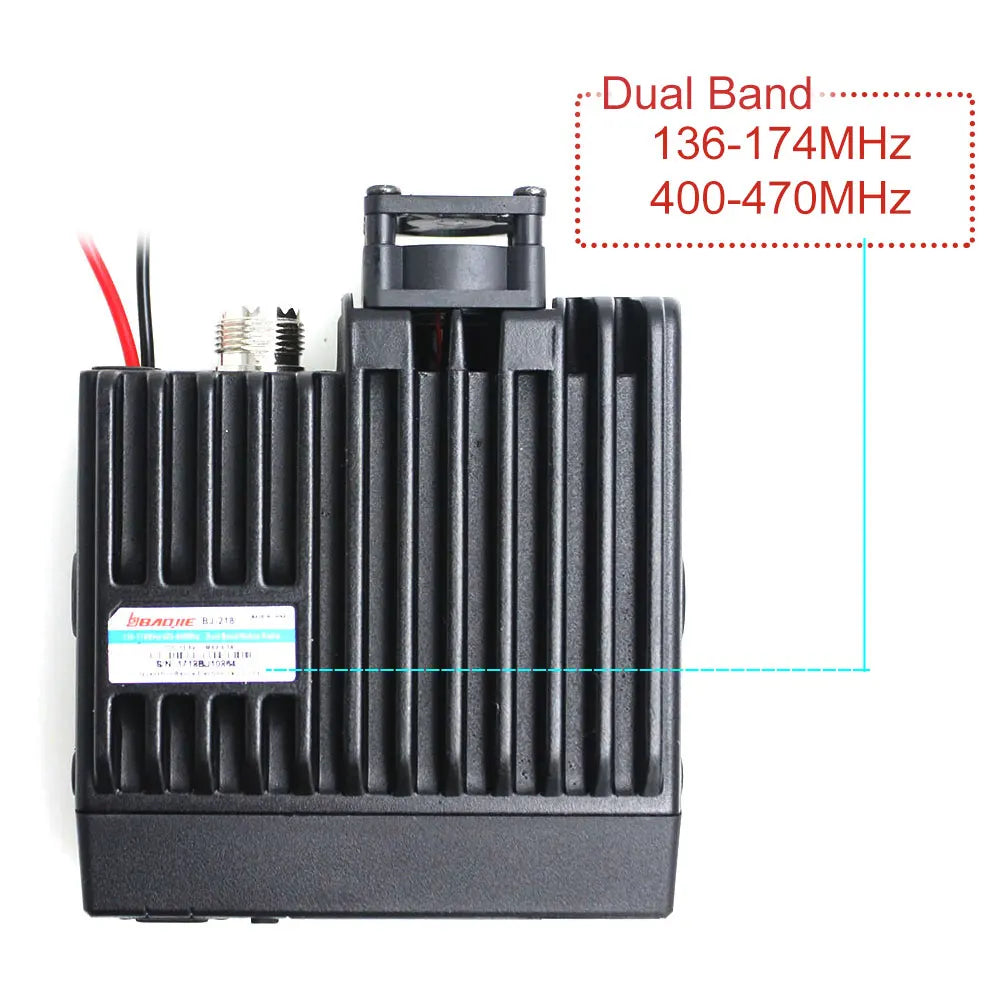

Frequency Range |
RX: 76-108MHz(FM Radio)
136-174MHz
400-470MHz |
TX: 136-174MHz(Ham Band)
400-470MHz(Ham Band) |
Frequency Step |
2.5/5/6.25/10/12.5/15/20/25/50/100/200KHz |
Frequency Stability |
±2.5ppm |
Repeater Shift |
±600KHz (144MHz)
±1.6/5.0/7.6MHz (430MHz) |
Antenna Impedance |
50ohm |
Supply Voltage |
Nominal:13.8V DC (±15%), Negative Ground |
Output power |
High power:<=10W;middle power:<=6W;low power:<=3W |
Operating Temperature |
-20°C to +60°C(-4°F to+140°F) |
Case Size |
105x30x106mm(Width x Height x Depth and not included Projection) |
Weight(Approx) |
0.6kg |
Transmitter |
Maximum Deviation |
±5KHz |
Spurious Emission |
<=-60dB |

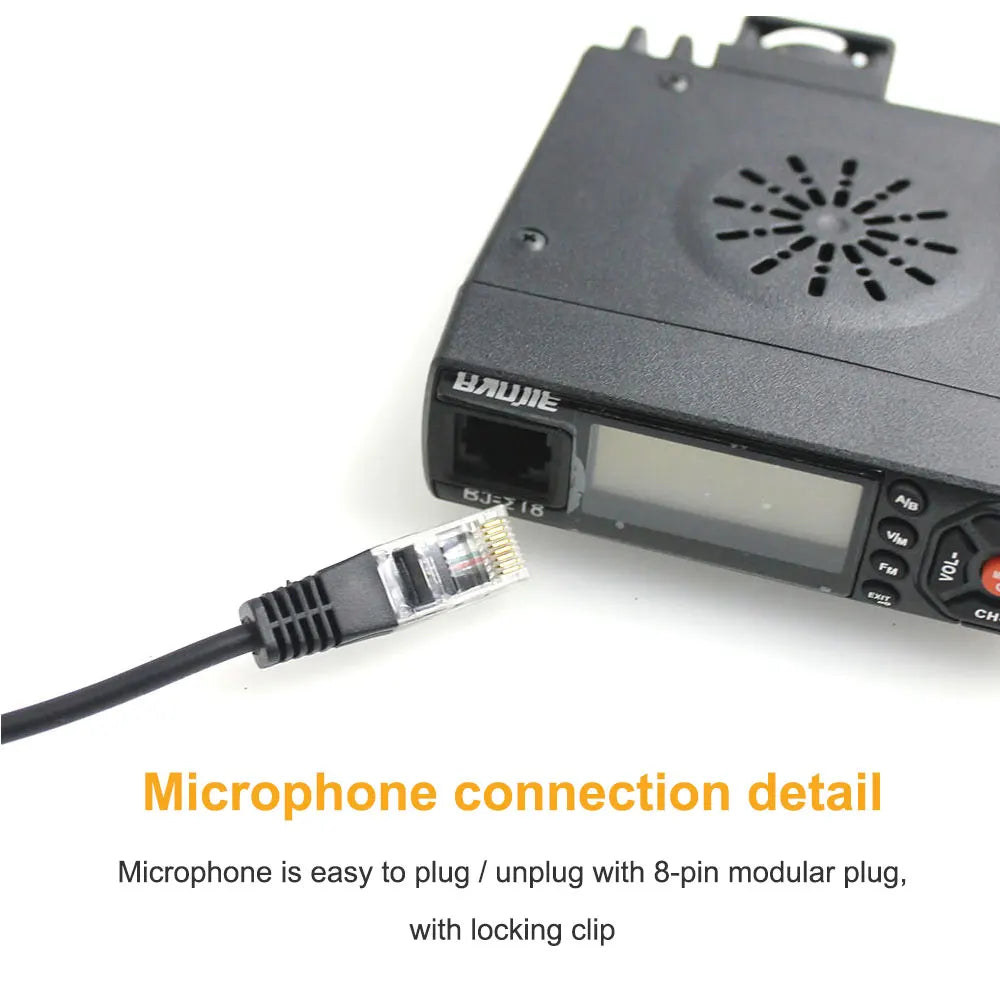

Microphone Impedance |
2Kohm |
Receiver |
Sensitivity |
2µV TYP for 12dB SINAD(76-108MHz,AM)
0.2µV TYP for 12dB SINAD(136-174MHz, AM)
|
Sensitivity |
<=0.2uv(12dB SINAD) |
Working current |
Receive |
0.3A(SQL) |
Transmit |
5A(Max) |
